Help Please, I tore into my rear cargo door lock mechanism

[KSMTAW]

Hello,
I made a mistake and tore into my rear cargo door lock mechanism like an animal! I hade to replace a broke little spring. I usually take notes or pictures of such a complicated mechanism, but for some reason I did nto do it this time.

I replaced the spring and lubed everything back up, but now I need to hook up all the little rods and such.

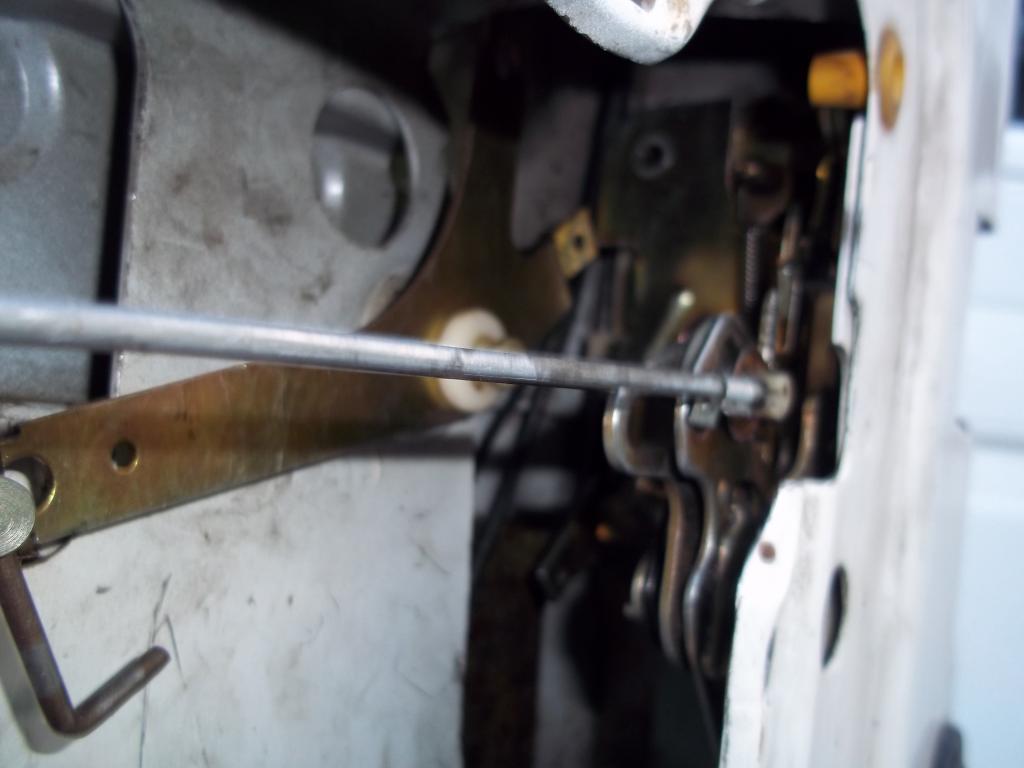

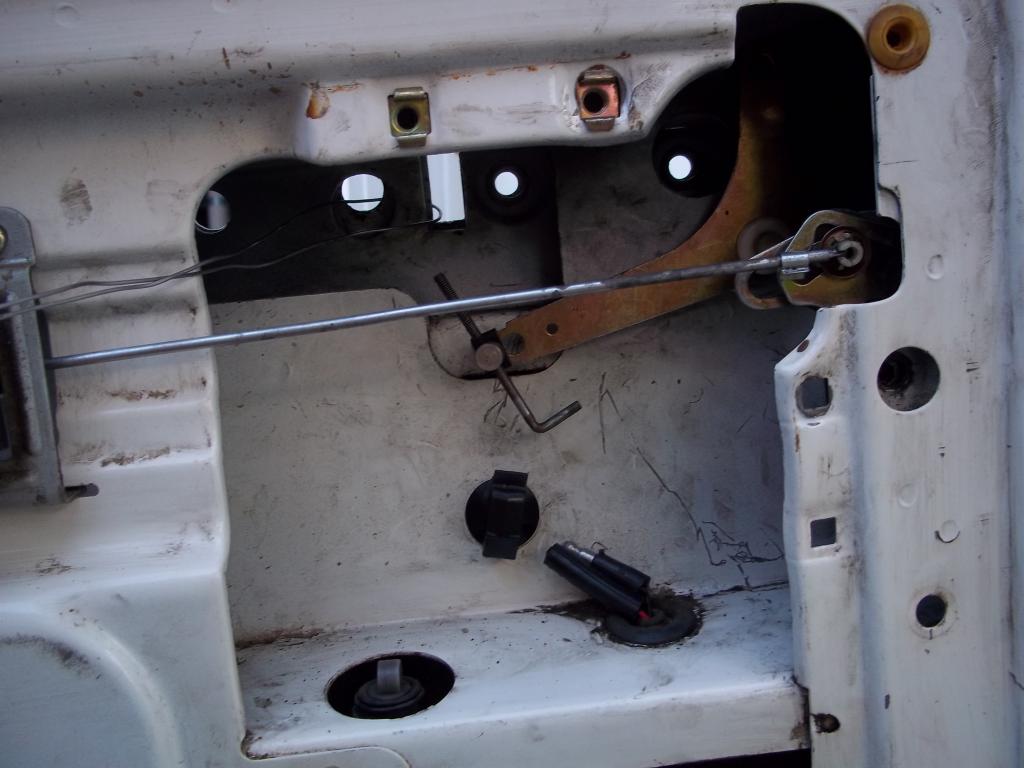

Does anyone have any photos of what it looks like hooked up? I will be extremely grateful and promise to return the favor at some point in time. Attached is what it looks like now.

1994 Disco 1 with automatic door locks.

Thanks-Todd
65 IIA 88
89 944 2.7 Liter
46 Farmall H
94 Disco 5spd

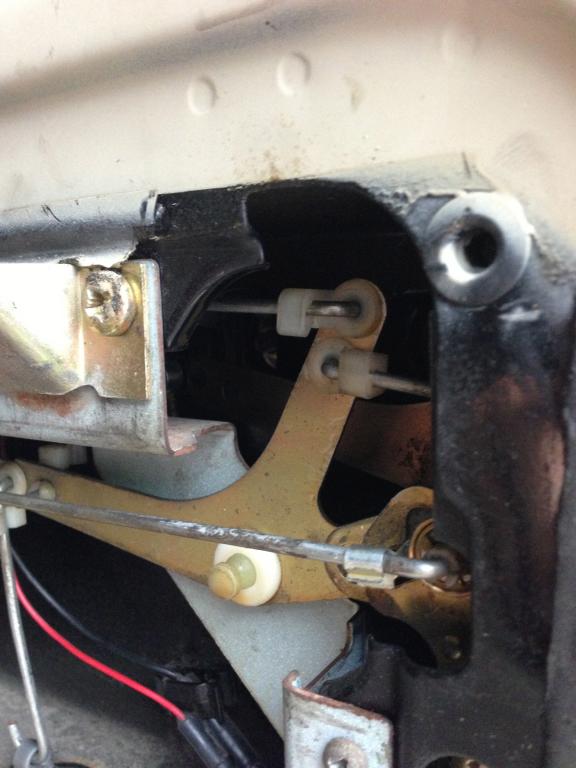

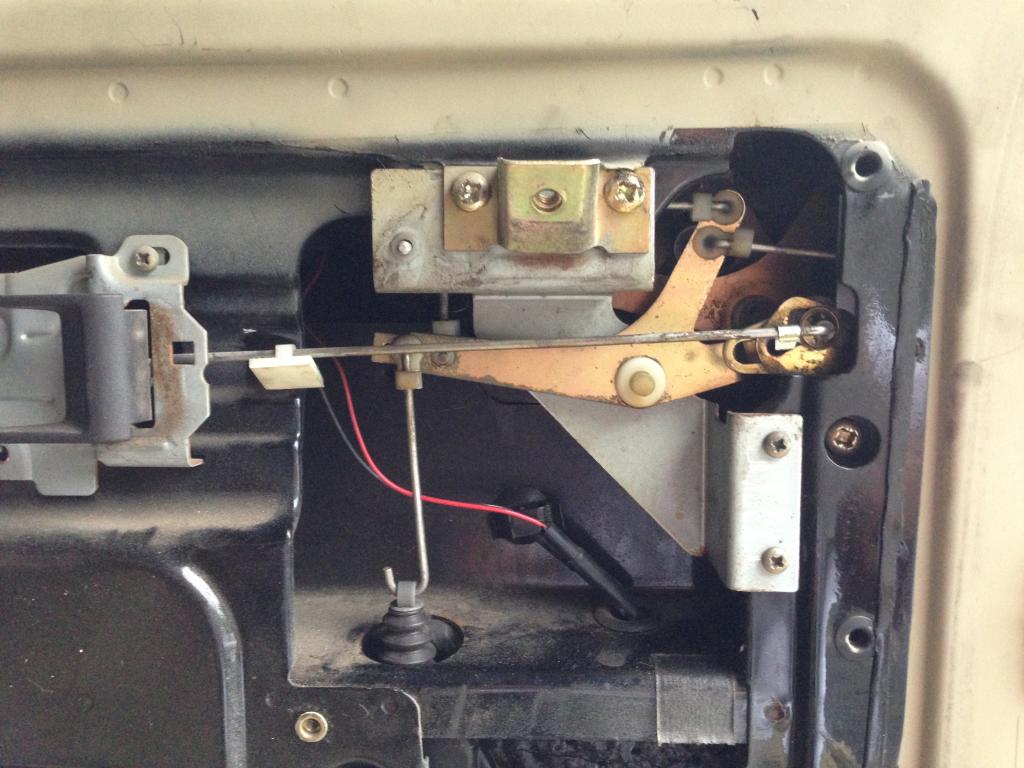

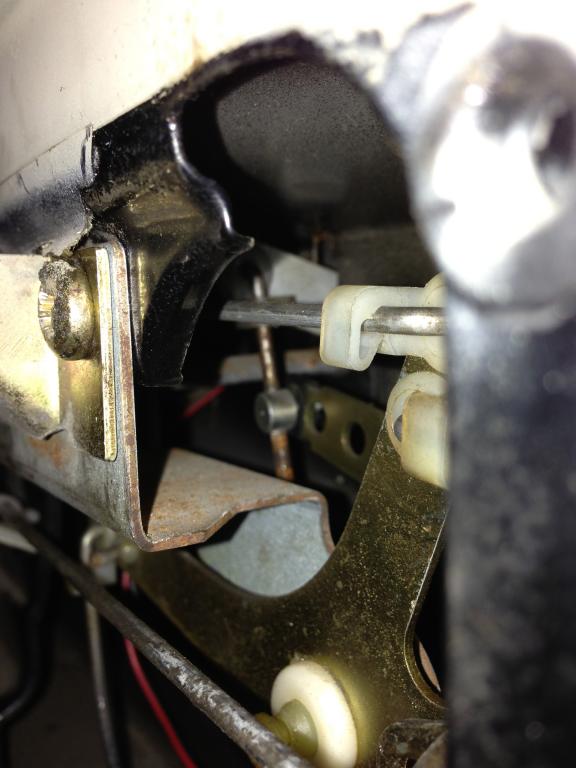

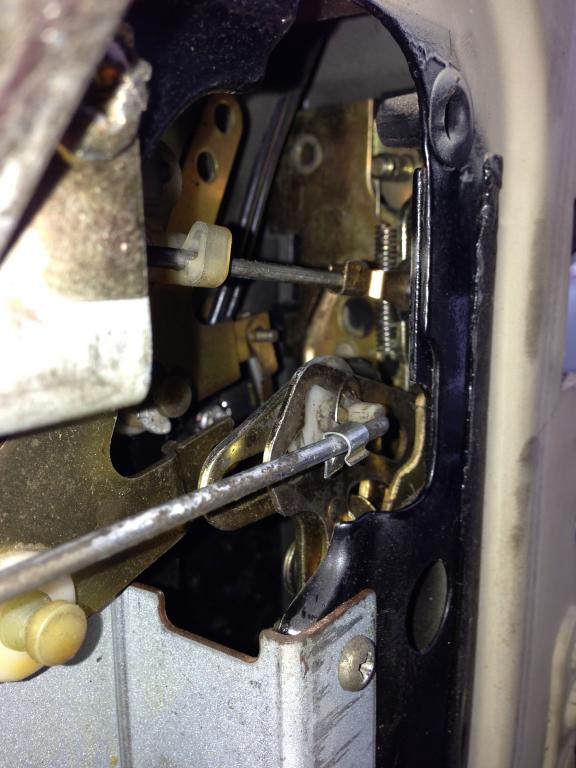

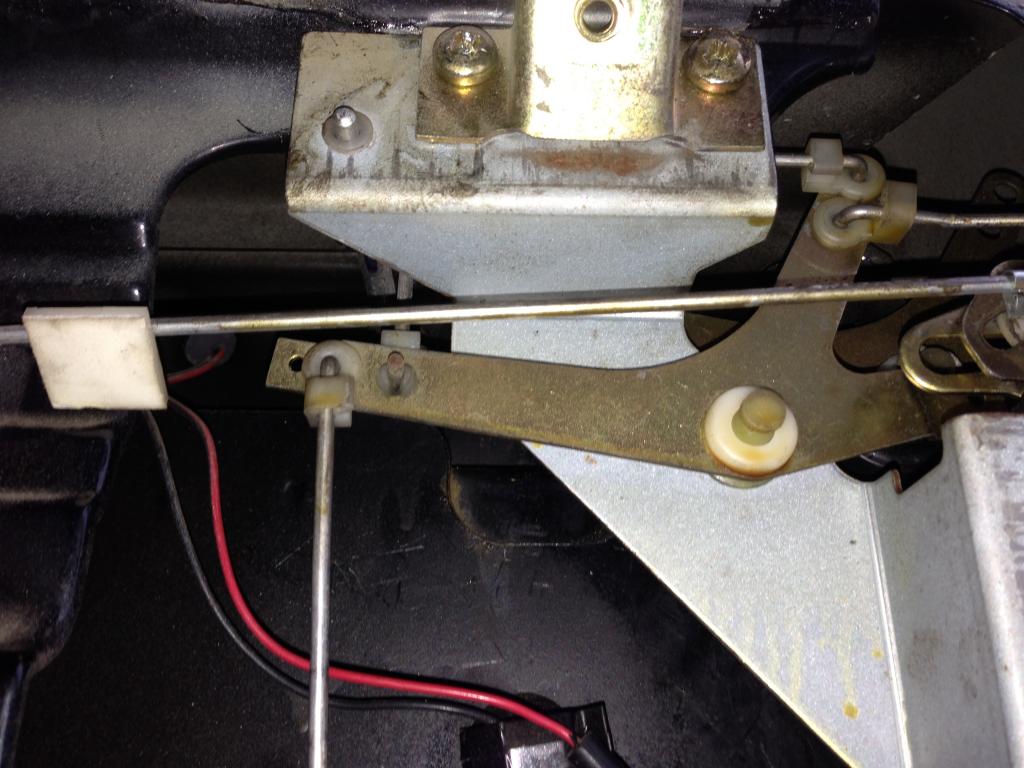

[dandruka]

[dandruka]

[KSMTAW]

dandruka, thank you very much. This should definitely get me going in the right direction. Thank you for taking the time to help me out. Have a great day.

[dandruka]

No problem! I've switched out several of these with my discos over the years. Good luck and let me know if I can help further.

[KSMTAW]

Hello,

I made some progress. I appreciate your photos greatly. If it isn't too hard, more would be helpful. Especially out in the pocket towards where the picture 2387 you sent earlier shows. Also, straight ahead where the handle comes through the door and the auto door lock actuator connects.

If it is too hard I understand. Thank you again.

[KSMTAW]

GOT IT ALL BACK TOGETHER AND WORKING GREAT.
