Looking for a Series 3 gearbox, LT76, preferably a later one

[roverp480]

Depending on which release mechanism you end up using, remember to get the correct clutch as although the 9.5 inch friction plate is the same on a late 2A and S3, the cover is different to match the two release mechanisms. On a S3 the release bearing presses directly on the Diaphragm spring fingers. On a 2A the is a thrust plate attached to the end of the fingers.

[vlad_d]

Week 11 update:

Bellhousings issue resolved:

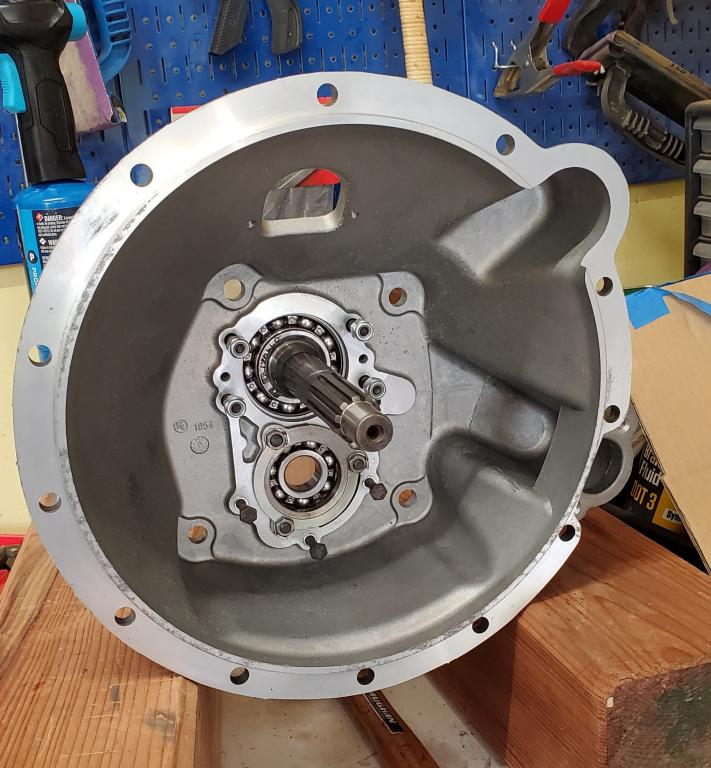

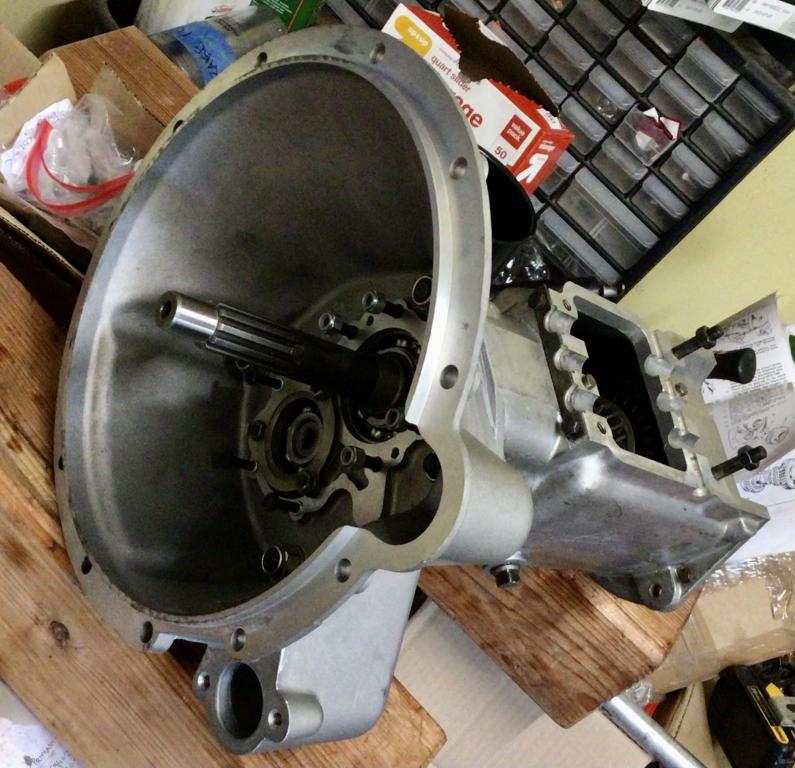

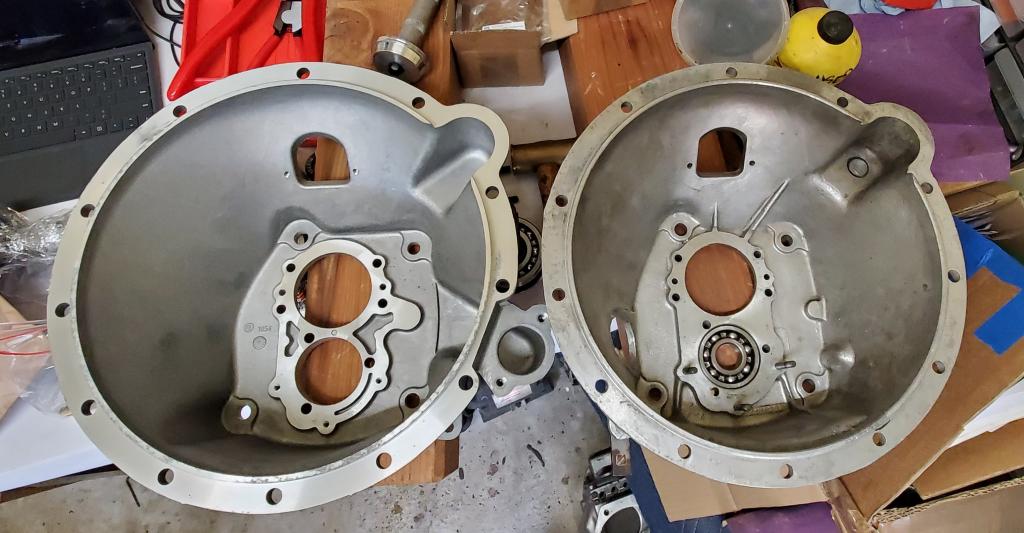

I received my Series 3 bell Housing. This is the one with the clutch release mechanism that is the hydraulic kind. I'll try attaching a picture comparing the two, in case anyone's interested. The one on the left is the S3. Notice it has two pop outs (one for starter motor, one for the hydraulic clutch piston). The S2 one is on the right. Notice it has only 1 pop out(starter motor) and a big hole in the side for the lever-driven clutch mechanism. Now you can tell them apart(and I can, too). I'll probably be selling the S2 one on ebay soon. PM me if anyone wants it. I have to admit that @Rover480 was trying to tell me this in the beginning of the post. I thank you. You were right.


Reverse Gear and Reverse Shaft

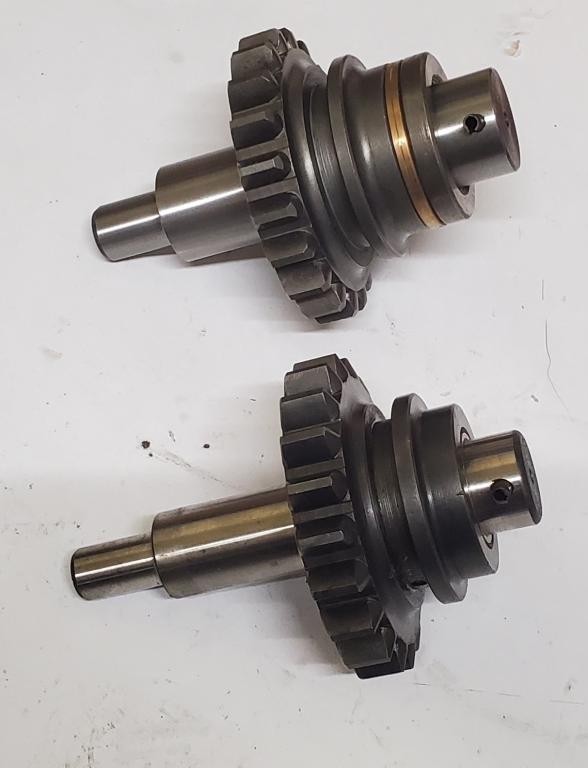

This one is another suble difference between the Suffix "A" gearbox and all the others. I should have suspected this, because it was a different part number in the parts catalog. The parts catalog shows nice drawings, but they look identical as drawings. It's only when you look at the parts in-hand and try to assemble that you realize some dimensions differences. The Suffix "A" gearbox case has a slightly smaller diameter hole for the Reverse gear shaft. The Suffix "B/C" Reverse shafts, which are better, are larger diameter. I ordered the Suffix "A" Reverse shaft with the "upgrade mod" Reverse Gear (FRC1893). It came a few days ago and I compared the two. I'll try to post some pics. They seem the same length, the gears are the same width and teeth the same, etc. I got a machinist caliper on them to be sure. The improved B/C+ Reverse has a thicker shaft and roller bearing setup, which is smooth as butter. The Suffix A setup, even with the upgrade mod, is just a bronze slip collar. The Reverse Gear just rides on a thin film of oil, and wears that bronze bush. I had thought of maybe swapping the roller bearing setup onto the older shaft...but they are different diameters. The other thought was to machine the B/C Reverse Shaft end smaller, to fit the Suffix A case. But, the other end was also different diameter. In the end, I'm just going to install the Suffix A Reverse shaft with the mod upgrade gear. It looks to have an oil hole and criss-cross oil channels cut into the bush...so maybe it will stay lubed. Plus, you don't spend much time in Reverse, so maybe it's not an issue compared to the life of other gears. Maybe by the time your bronze synchros wears out, Reverse is still going. These are $30 parts, so sorting this out now is key. Don't mind getting both and comparing.



Going to assemble more this weekend.

[vlad_d]

[B]Week 11.5 update[\B]

Finally building up the gearbox
Alright! With all the parts mostly in, I could finally start with some assembly. I have to say that the YouTube series by SteamWally is amazing. I was able to start putting these things together. I got all the bearings pressed into the Bell Housing, and retained with their various retaining clips, etc. Then drove the Primary Pinion into the Bell Housing. A brass hammer and a cheap bearing race and seal setting tool worked wonders.


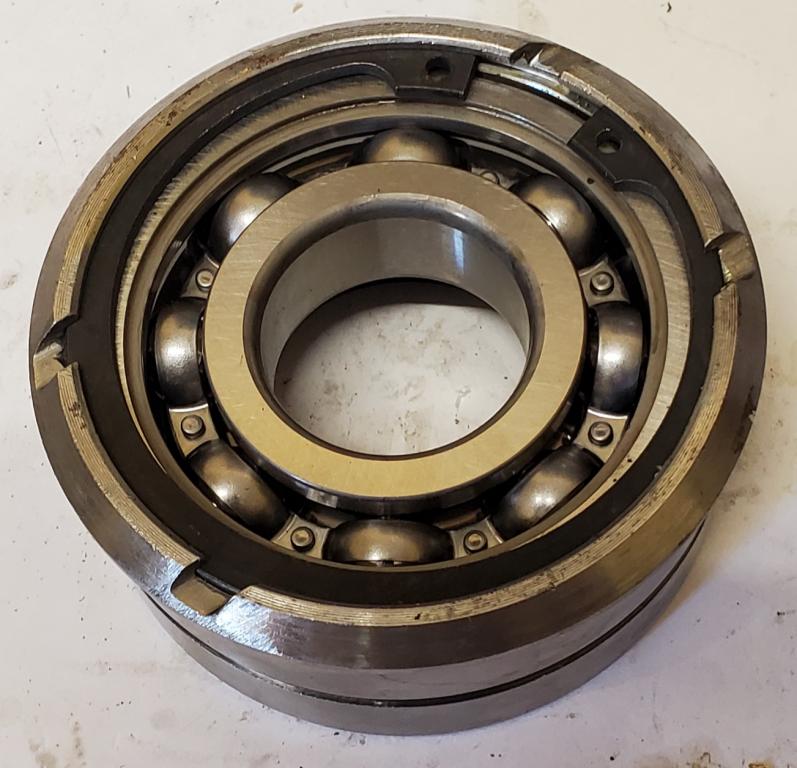

On to the MainShaft! The Parts Catalog shows a dizzying array of parts on it - broken up into two parts (front and back). In practice, it's less parts than it seems. The back half is partially in the case. The Rear Bearing and Oil Seal are kind of held together in this unit, with giant C Clips. A Harbor Freight moved in about 2 miles from my house, and I got a cheap FULL set of interior/exterior C Clip pliers. I can't stress enough how good an investment this was. About $30 and getting these monster C Clips on was no sweat. This unit then gets pressed into the rear of the case. The manual calls for Loctite 601. Well, good luck finding it, because they don't make it anymore. Loctite 603 is what I used. I think it supersedes it. Again, a brass hammer, gently using brass punches, in alternating strikes drove it home.

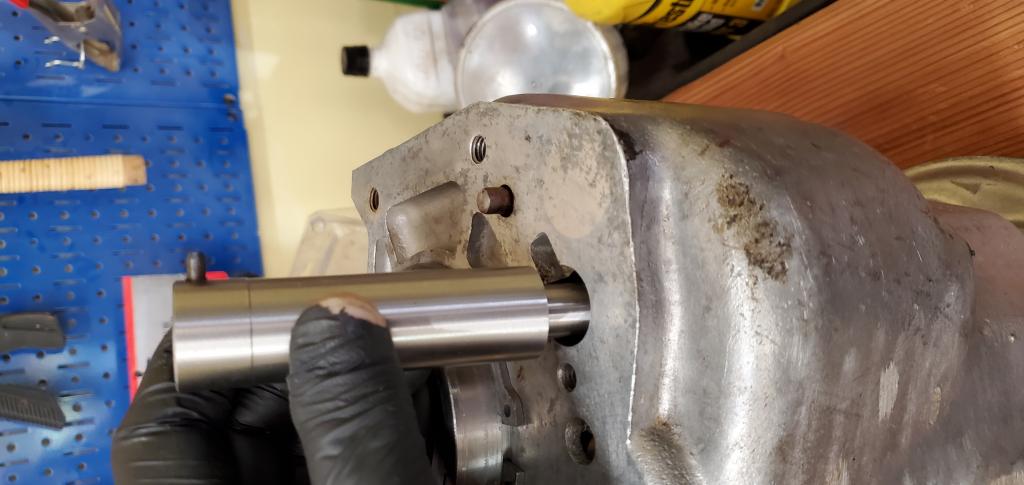

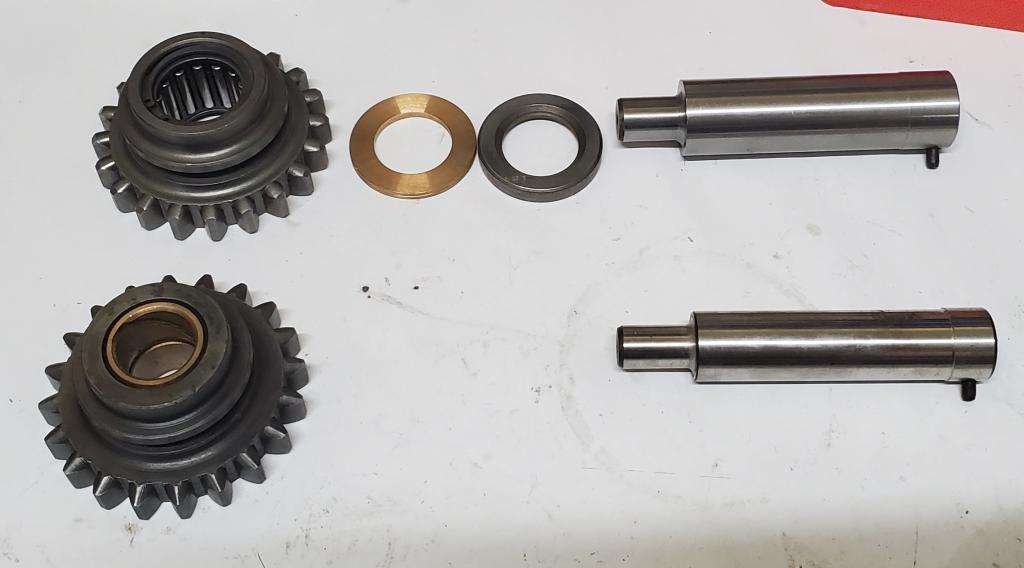

Here's a look at me trying to put a large diameter reverse shaft into a smaller diameter hole. You can see why it didn't work:

But, using the correct one for my "Suffix A" case (described below in thead) worked fine. You just drive the reverse shaft through, then put the gear on, and drive it the rest of the way into the loop inside that holds the other end. The shaft is driven flush with the back of the case, and the pin holds it from spinning.

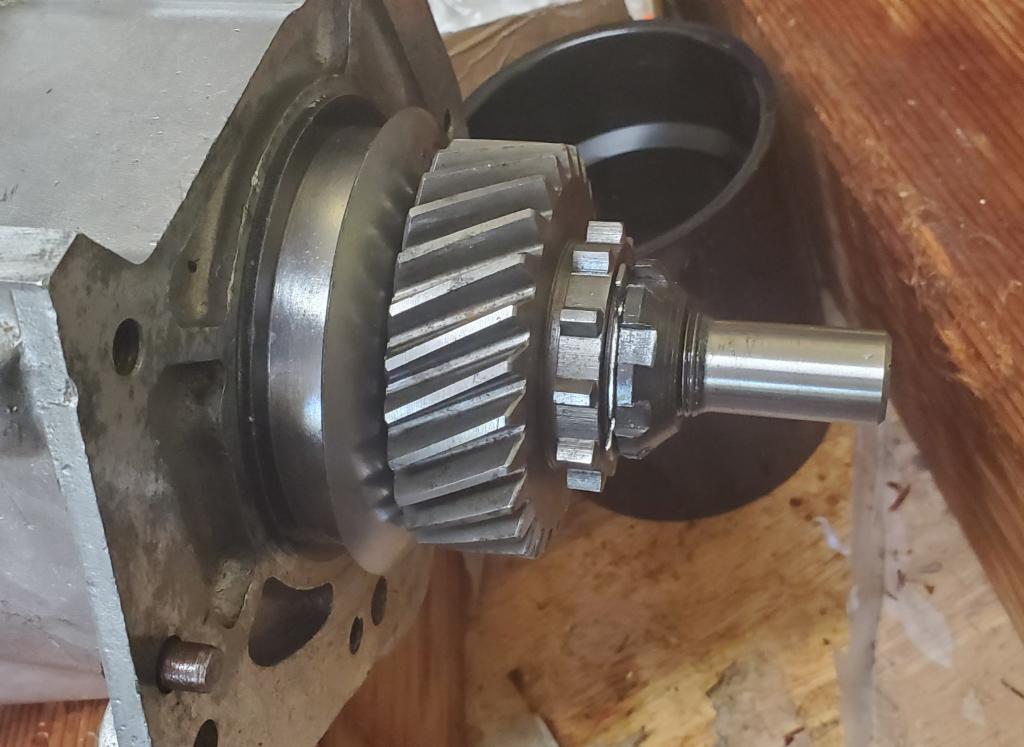

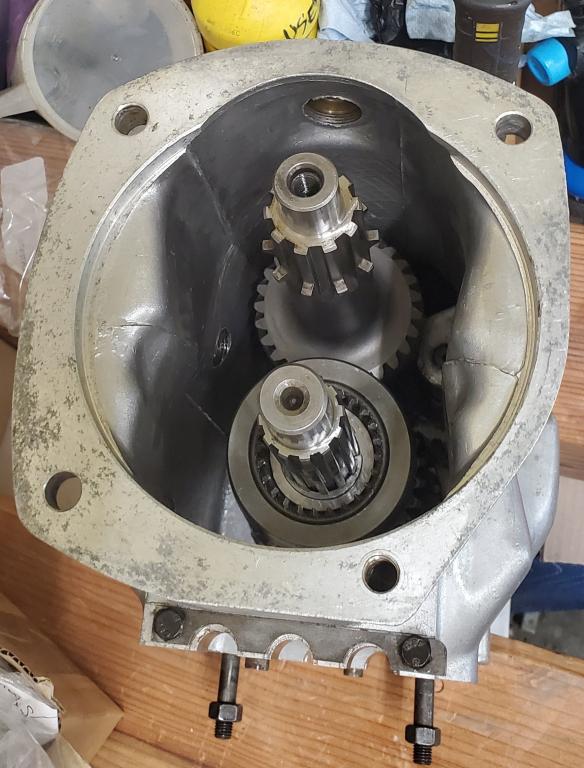

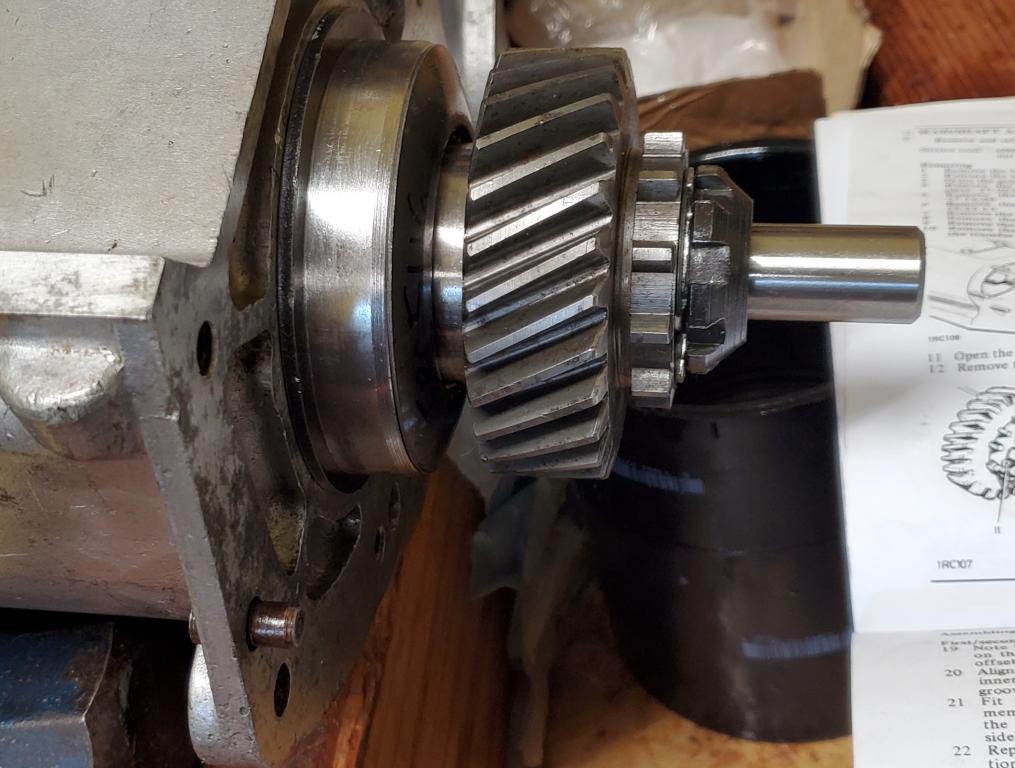

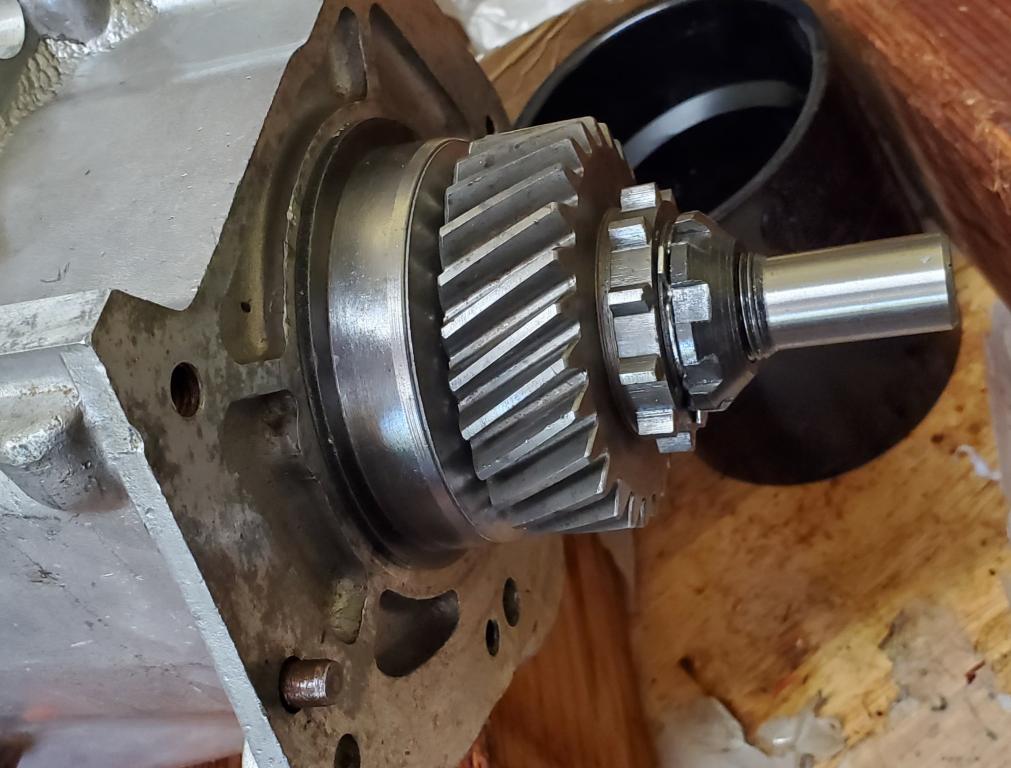

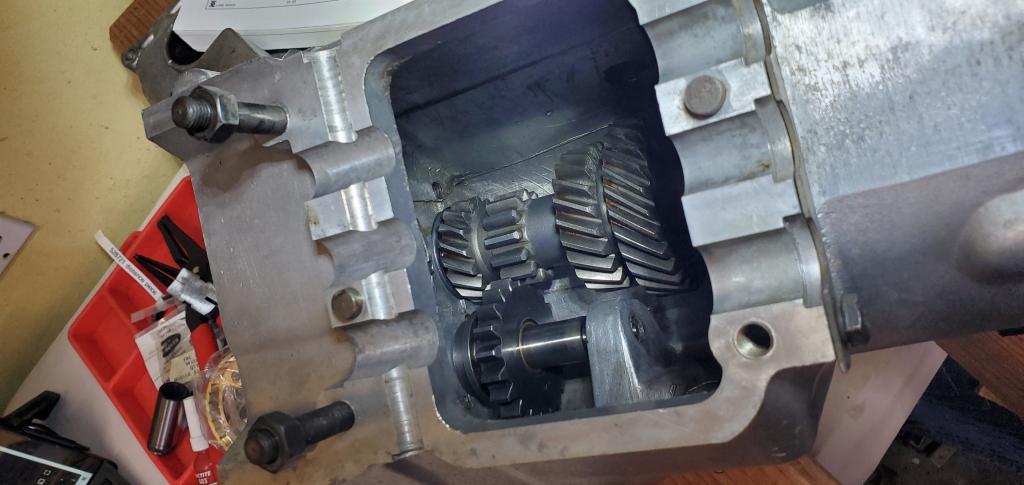

I put the Layshaft in to check end-float. Here's a pic of how it aligns with the Pinion, which sticks out of the front of the Bell Housing:

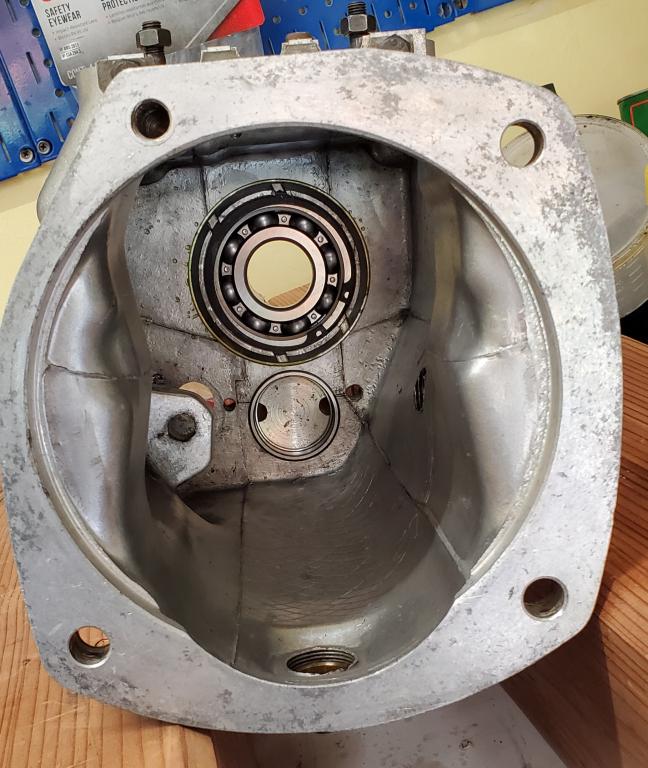

You can see it inside of the case below, and see how it fits into the back bearing race and reverse gear.

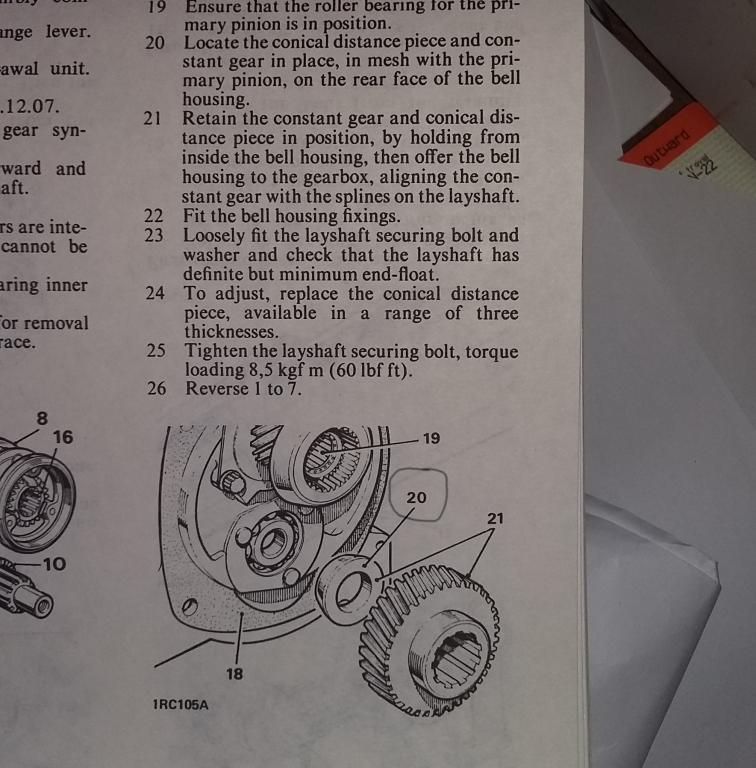

Starting to understand how all this works! The end-float here is kind of all about how the Layshaft aligns with the Pinion gear that sticks into the main case. The bearing has a little wobble, but it feels solid when engaged on both front and rear bearings. I ended up using the middle size up spacer so the gears aligned right in the center. The smallest one was fine, but didn't mesh the gears on the centerline. The largest one pushed the Layshaft so far into it's back bearing race that it didn't spin. So, middle sized one it is!

Back to the MainShaft.
I started to assemble the MainShaft, from the back first. I had the two-piece kind of bush for between 2nd and 3rd Gears. There's all kinds of assembly, test end-float, disassembly and repeat, steps here. You're supposed to file down the soft brass/bronze with sandpaper to let the gear sit higher or lower. I had a set of feeler gauges and tried to get the tolerances right. But, I discovered a weird thing. The middle ridge (or larger end-cap, in two piece versions of the bush) had a chamfer machined into it as it met the gear shaft hole...which also had a matching chamfer. They're supposed to sit flush. Well, it didn't quite sit flush, so that means the bush never quite pushes all the way to the bottom. So, no matter how much you sand/file the bottom of that bush...you're not increasing the tolerance. I confirmed this by softly tapping down the bush and noticed a cut mark on the chamfer where it was rubbing. In the end, I was at about 0.009 when the manual says 0.004-0.007. This was with the smallest spacer. I don't know if this is just bad BritPart machining, or if the brass bush is meant to "wear in" on the first couple hundred miles. I figured I would drive it slow for the first few miles and watch the temperature. Those brass bushes are SO soft, I could buff out dents and scratches with 1000 grit sand paper...so I figure it will rectify itself with slow use. I even thought of maybe bench spinning it a few thousand revolutions just to "seat" everything and "wear it in" nice. Any thoughts out there, Rover experts? I'm all ears.


The other weird thing is that the parts were so tight tolerance machined , that the gear BARELY spun on the brass bush. Without the pin securing the brass bush, the bush spun on the steel shaft. But, after you get all your end floats confirmed, you're supposed to put the pin into the MainShaft and then the bush has a little notch that slips over that. The bush now no longer moves, and the GEAR is supposed to spin. Well, that bush(ing) is so tight on that gear that I have to muscle it around to spin. I spent a good 10 minutes working it back and forth to polish the brass bush. It eventually became easier to spin. But if I hammered any of the parts down, I could easily seize the whole assembly. This was concerning. Again, I worked it for another 10 minutes and it spun easier. I suspect I will have some brass powder out of my first gear oil change. I'll try to take it easy on break in. Is this normal?

...part 2 following this... (RN forum only letting me attach 8 images at a time)...

[vlad_d]

Week 11.5 (part 2)

Front half of the MainShaft
The rest of the MainShaft goes together. There's another spacer here, which you check when you have the 1st & 2nd Synchro on, and also without it on to check if the bush it sits on will be in tolerance. This is held on with the "taint of the devil" spring clip. I am glad I bought 5 of these. I ruined 2 of them! Always buy 5x for these clips and retainer things...they are often $0.35 each, and it's good insurance, because you'll either destroy a few or they will fly off into the garage somewhere and be gone form this dimension! I tried all kinds fo tricks to get them on: slide them over a wire, use C-Clip pliers to expand them, use flat-head screw drivers to pry them on, etc. All these methods stretched them beyond their limits(instantly ruining them) or didn't work. The only way I got it to work was with two vice-grips on the ends and just gently pry them apart as I pushed down to get them to slip down. Any more pressure and you risk making them oval/ellipse, and then they don't lock anymore.

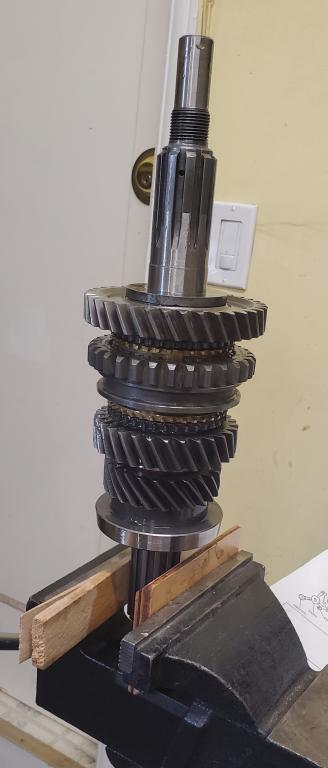

After I got all this fit up and snug(tap the spring clip in with a metal punch all around to make it seated nice), I turned the whole MainShaft over and tapped it here and there with my brass hammer to release any pressure. I was hoping this would work like you do for U-Joints...where you don't want everything sitting right up against the C-Clips. So, I hoped that would distribute the sliding bits more evenly in their tolerances(end floats range). Spinning it after revealed it was a little looser. I still spent a good 5-10 minutes spinning everything. Seemed to get easier the more I did it - but it's still tighter than I would like. It's definitely not a "one finger" flick to spin each gear. More like a full grasp with your hand and force it to spin. I really do hope that it gets easier as it wears in. Is this normal? I hate to have to order new parts (and wait another 3 weeks).

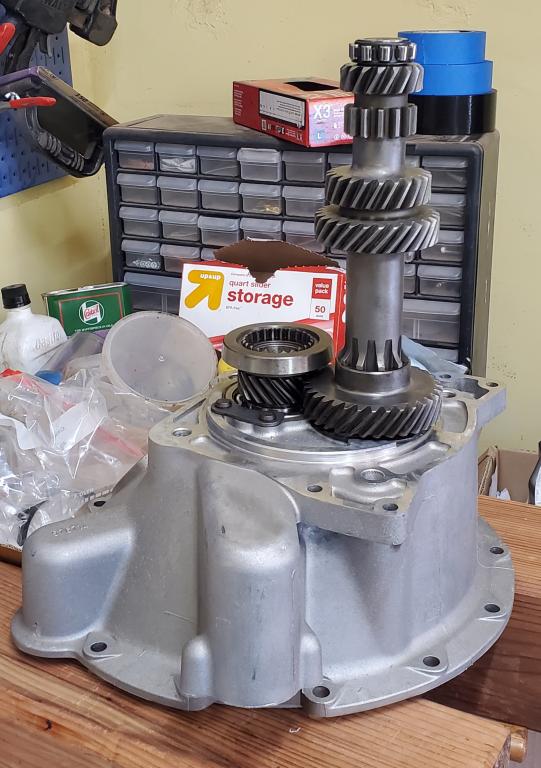

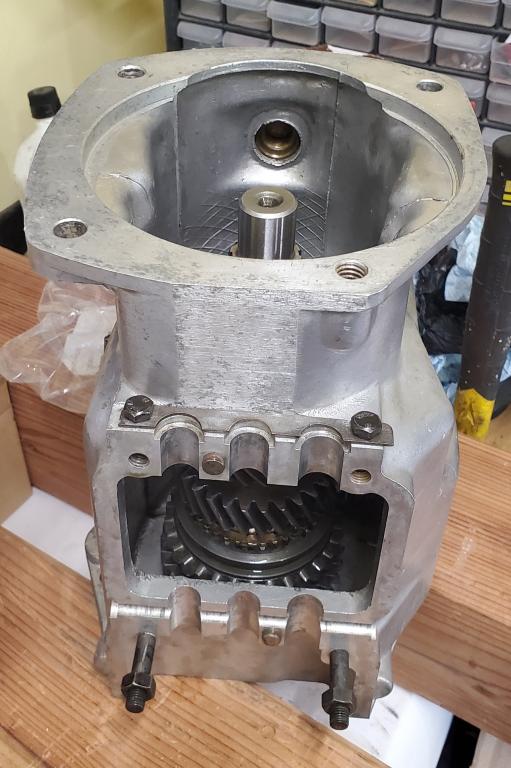

Finally, I put the Mainshaft into the case, driving it into the bearing at the back. I was expecting this to be harder, but it went in really easy once you move the reverse gear out of the way. So, do it with the main case sideways (so the reverse gear won't try to fall back from gravity). And just get it past the reverse gear, and into the large rear bearing that goes through the case.

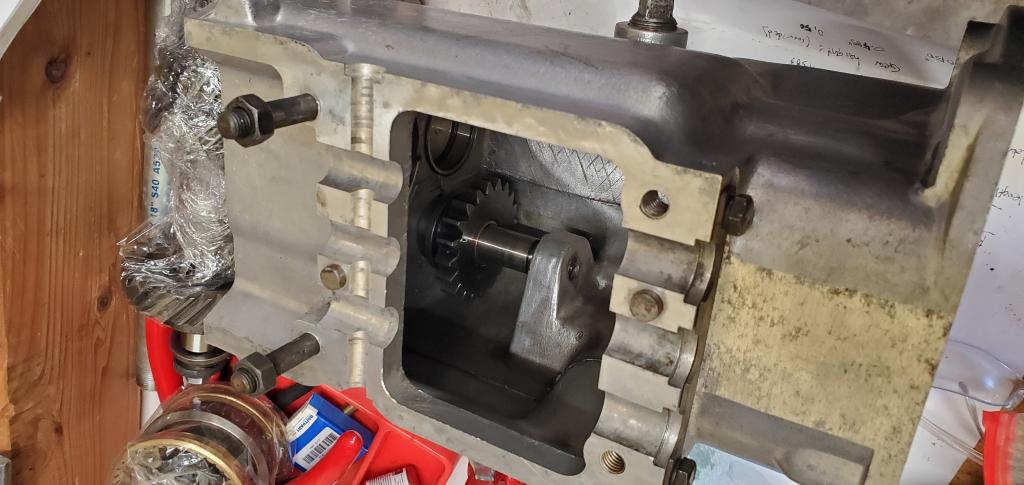

Then, put the Layshaft in. Same situation here. Do it with the case side-ways so that you can clear Reverse gear. With Reverse out of the way, it's easy to find the alignment. Here is a pic with both shafts in...

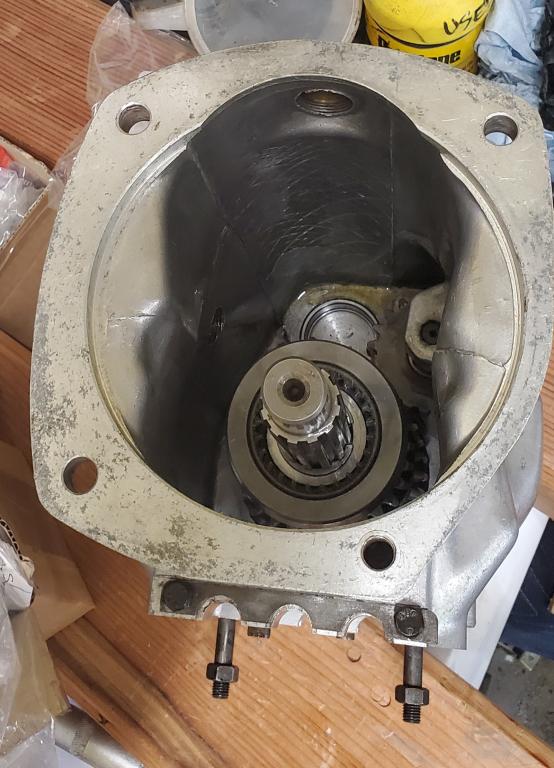

And finally, put the 3rd/4rth Synchro unit (a beautiful object) onto the MainShaft. Put the roller bearing on after. Put the Primary Pinion gear onto the Layshaft (loosely) for the next step.


The next step will be meeting up the Bell Housing with the main case, and trying to mesh up the Pinion gear with the end of the Layshaft's gear...and tucking the MainShaft's roller bearing into the recess of the Pinion gear sticking off the Bell Housing. But, I forgot to order one of those threaded studs for the top-left bolt hole...so I have to wait before final assembly.

While I wait for parts: What sealant do you guys like to use? I heard you don't want RTV because globs of dried Silicone can gum up the gears. But I don't want leaks. Saw one post say Locktite 5980? Anything I can get at the local O'Reilly's? I hate to order this $40 a tube stuff that's just the same thing as Permatex or Form-a-gasket but British. "Chestershire Sealants: For the finest locomotive, steam ship and horseless carriage parts. A trusted source since 1890!"

[vlad_d]

Week 12 Update

I decided to post at the beginning of the week, to give more people time to reply before the weekend(when I would use the advice)...Like many, I work during the week and build my Series on weekends. Hoping to get this resolved this weekend...

Bush troubles
I can't get it out of my head how hard that bronze bush/gear for 1st and 2nd is to turn. I watched a few more assembly videos (Jeffrey Corker series is fun, too). In all these, the gears spin like skateboard wheels. Mine requires a gorilla grip on the gear with your hand and muscle(marking your bare hand). That's not right!

Clearly, either the ouside of the bronze bush I have is machined wrong or the two gears are machined wrong internally to give enough tolerance to spin freely. Playing back my assembly process in my brain, I remember having a tough time first seating the bronze bush into the first gear. This was early in the endfloat check process, and admittedly my first gearbox. I didn't think much of it, because the fit against the mainshaft was excellent. I assumed the gear was pressed into the bush and both spun on the mainshaft(like the reverse gear is set up). I was wrong. At the end of final assembly, you drive a pin in the mainshaft that engages the bush...and the bush never spins again. So the spinning happens between the gear and the bush, not between the bush and the mainshaft. Great. I know that now. But it was literally a press fit! I used a brass hammer to tap it in. Brass is so soft, this compressed the bush a bit along the edge closest to the inner hole. It made the fit even tighter, as parts of the inner race bulged inward, making the diameter of the hole smaller in places. After working it by had, I could see rubbing below the dents from the hammer. I polished those out with 1000 grit sand paper. It was back to the original fit(still tight, but not seized). Then I had other problems listed below. Now, I want to reduce the outside diameter of that bush, to give space for the gear to spin freely. It's so close! I feel like 10 minutes of lapping or sanding and it will be perfect. But how to do it? I'm not a machinist, nor do I have a lathe.

Lapping the bush?
I had the idea of just running it slowly, to let the brass wear against the harder steel. I read a forum where another guy did that and snapped/mangled the bush as everything seized as it heated up and expanded. I don't want that.

Then, I thought maybe I could set up my drill press and an alternator belt to turn that gear for 10 minutes all out in the open. I could spray it with brake cleaner to flush out the brass powder filings. My version of a poor man's lathe? I thought this might be bad for the mainshaft, prematurely wearing it on the part facing the apex of the belt.

I thought maybe a soft abrasive might be better. Toothpaste? Okay, I'm better then that. I looked into Lapping Compund for valves. Well, I guess that bronze bushes are porous. So the compound you use for valves would get embedded into the bronze...and then the bush becomes a grinding tool against the gear. Yikes! No. I don't want that. I guess you're advised to use Garnet stone Lapping Compund for that.

But then there's the advice that - if you try to hand Lap something, you're likely to get off-cylinder shape. So, you're likely to make it slightly hour-glass profile, or conical. Ugh!

So now, I'm contemplating getting a new Bush and/or/both taking my gears and bush to a machine shop to have them professionally lathed for a good fit. Why are Land Rover parts like this? I've never owned a vehicle where I have to machine brand new parts pretty much 50% of the time because of poor fit. My Chevy, Pontiac, Jeep...never happened in 25 years. Land Rover? 1 out of 3 new parts is just out of tolerance?!

What do you guys think? This MUST have come up before for someone else.

[vlad_d]

Week 13

Bush troubles resolved.
Didn’t get any advice this week, so I decided to go to some local machine shops. First one couldn’t do it, so I asked them where they go when they need that type of thing done. They referred me to a racing shop across town. I walked into the racing shop - a cool place with hopped up Italian sedans and tubular frames. The owner is “out racing and won’t be back for a week.” Must be nice. I had a talk with a guy welding on some aluminum heads in the back, and he referred me to a place 2 cities over that I’d been to a number of years back. Went there with my gears and brass bushes and explained my problem. The guy in the back lapped them slightly and they worked much better! Asked how much? He said it’s free. Car people can be amazing, sometimes. So many characters and good folks helping each other out. I gave the guy $20 tip.

Back home, I assembled the main shaft again. Before I put the spring clip in, everything rotated fine. After the spring clip went on, it was tight as hell. I was really bummed. So, I took matters into my own hands. I went to the auto parts store and bought a long v-belt (alternator belt). Put it on the gear, and flushed out the gear oil with brake cleaner. I wanted no lube, just friction. I spun the gear back and forth with the v-belt. Took it all apart and looked at the “witness marks” where it was rubbing. I also noted that the spacer piece under the spring clip rotated a slight bit(it’s keyed into the main shaft, so it doesn’t go anywhere). This told me there’s clearance/end float. But the bronze bush is so tight on the main shaft as to be a press fit. I saw witness marks on the inside of the bush, the outside, and the top.

Grinding

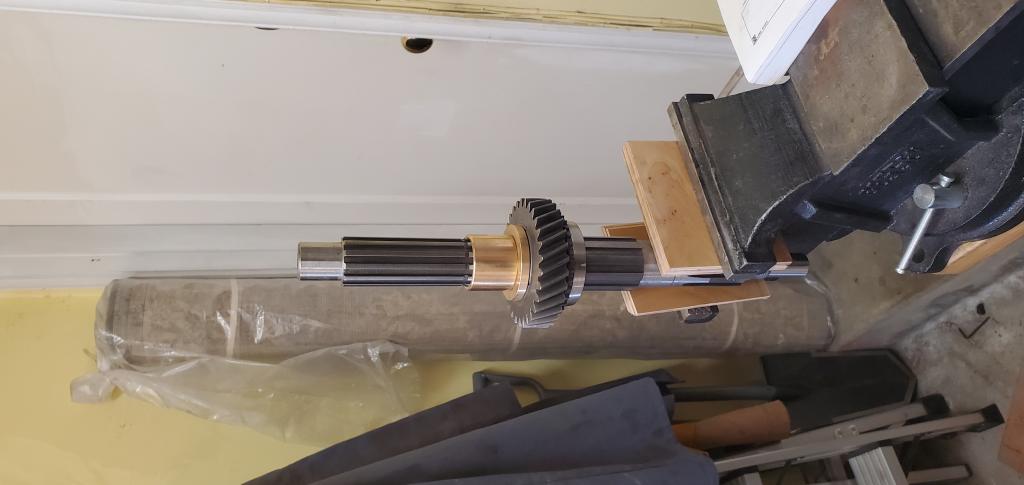

Seems Series ownership requires a $10k lathe, but I don’t have one. So, I make due with 400, 600 , 1000 grit sand paper and a glass plate. Same as sharpening my woodworking chisels and planes. I took the end through the grits, and removed the witness marks. I used 600 grit to polish the parts rubbing. Just enough to remove the marks. Put it all together, and worked it again…look at the marks…polish again. I did this about 5 times. I also didn’t like that the mainshaft seemed to scratch the bush every time it went on. This is a brand new, freshly machined part..so it was bur sharp. I took some 400 grit paper cut into strips and did a “shoe shine” polish on the mainshaft, too. Mainly to just get rid of the burrs. After this, the bush fell onto the mainshaft by gravity…no rubbing. Dit the same process to the outside of the bush until all parts spun nice and left minimal witness marks. I think this is me manually “breaking in” the parts, without the risk of the gearbox heating up. Cleaned everything up, re lobbed and re assembled. Everything spins great now! Checked end float and I’m at 0.004”, right in range.

The moral of this story is: when getting 100% néw parts that have never worked together, expect some machining artifacts. At least with Land Rovers, that is.

One piece bush or two piece?
A mystery to me is the one piece vs two piece bush on the mainshaft. 100% of the rebuild videos and forum posts show this part failed, and sheared into 3 pieces: the front part under 2nd gear, the collar separating 1st/2nd, and the back part under 1st gear. So, LR now superseded this with a 2 piece. Like “it’s going to break anyway, so just make it 2 pieces”. The part that confuses me is the oil flow. Oil channels and holes are only on the outside of the bush(between the bush and gears). In the 1 piece, the entire bush is held onto the mainshaft by a pin. It doesn’t spin. The spin happens on the gear. In the two piece, it’s the same, but nothing stops the piece without the collar from spinning. So, it spins on the mainshaft with no lube. This sounds like an obvious point of failure. What am I missing? I feel like I’ll be doing this gearbox again every 2-3 years, replacing this part. Is that your plan, Land Rover?

Next problem…something else is seized.
Finally got all my parts in, and proceeded to put the bell housing on. Earlier in the post I dry fit the layshaft and bell housing to check end float. I know it fits perfectly smooth. I put the mainshaft in now…got all the bits together the right way and put a gasket in. Tightened the bolts and layshaft screw. Everything is seized! I took it apart after 24 hours and checked everything. Reverse gear and 1st gear were engaged at the same time. It’s possible without the shifter mechanism stopping this. I scrapped all the gasket goop, confident that I resolved it this time. I put it all together again, fresh new gasket covered in goop. I tightened down all bolts. Move reverse out of the way with a long screw driver. Made sure 3rd/4rth synchro is centered, and slid 1st/2nd synchro to first(it kinda falls there by gravity on the bench, upright). Still seized!! I back off the bell housing bolts, tap the housing forward off the gasket…everything spins. Not fully, but it clicks back and forth maybe 5-10 degrees of arc. Tighten the bell housing bolts, and it’s seized again.

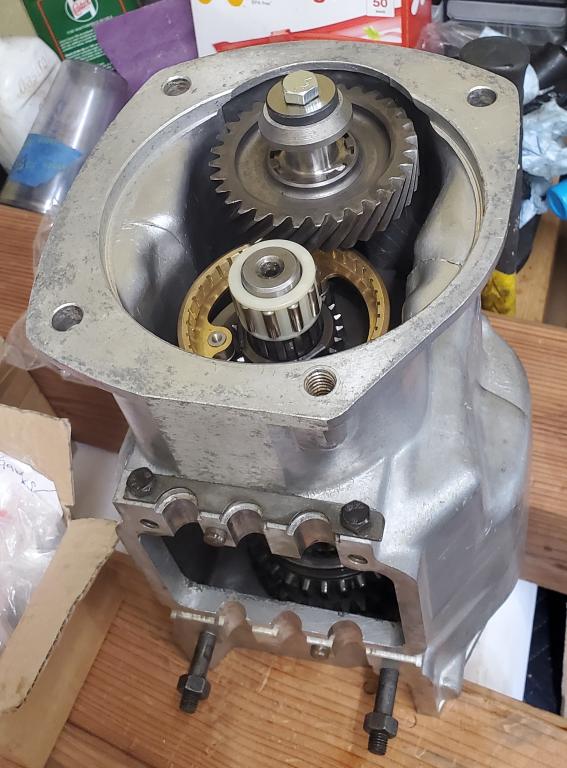

I don’t know what to do. Everything dry fit fine. At least it LOOKs like a complete gearbox:


I’m hoping it’s just my understanding of the gear shifting that’s wrong. Going to leave it another week while I learn some. Any help, much appreciated.

[roverp480]

A couple of things come to mind , have you got the end float on the Layshaft correct and am I correct that it is seized even with the gears in neutral . It may be worth fitting the main output gear onto the rear of the box and tightening its retaining nut to make sure the main shaft is pulled hard against its rear bearing. I vaguely remember when I built up a box 20 years ago that if the end float and the position of the gears on the layshaft were not 100% it jammed the constant mesh gears.

[vlad_d]

Thanks @RoverP480, I got excited and did what you said...tightened up the castleated nut on the back to try and seat the mainshaft better. I was avoiding this part until I had the transfer case out. Seems there are two part numbers for these tin-y "Oil thrower" things, depending on which transfer case you have...and I didn't want to smash them before I knew which one I needed. But I threw one of them on there and tightened the castleated nut(a true pain, even with the gears seized). Dang it, it's still seized. I took it all apart and I'll have a good look again this weekend.

Good thing is I got a 10 pack of those bellhousing-to-casing paper gaskets. Ruined 2 already.

Side question: Do you folks use gasket sealer on that gasket? Or smeared in grease and just put on? I've always used gasket sealer on American cars. But a lot of these LR paper gaskets go on dry or with just grease to hold them on while you tighten bolts elsewhere on the truck(swivel balls, hubs, etc). Gasket sealer sure complicates meshing up the pinion gear to the layshaft gear. Seems to get all over my hands while I'm reaching around in tight spaces! Also, it's a 1 shot thing, and I have to scrape it off between tries. I'm inclined to not use it...but I'd hate to leak gear oil there. When's the next time I'll have it all apart again after its installed in the truck, right?

I have the smallest of three distance pieces on the layshaft (0.125", I think).

I can't work out how reverse is supposed to work. It seemed jammed. Looks like it will fit either fully forward, or fully back...but won't clear 1st/2nd Synchro. I mean, the Synchro/layshaft won't turn...so maybe it would clear if the gear teeth meshed and it could slide by?? It's hard to see in there with the bellhousing on. I even got a small ear wax pen camera in there to see.

The worrying thought I have is maybe the brand new bellhousing is machined wrong...maybe slightly askew, and pushing the shafts over a bit? It wouldn't be the first time a brand new aftermarket LR part was machined wrong. Meshing up the pinion gear and layshaft is the usual pain...but even when I do get it lined up...the last 1/4" doesn't want to go. I chalked it up to having to press in the layshaft to the bearing. But I wonder if something is just going in crooked? I have to use the bellhousing-to-case bolts to drive it down the last 1/4".

Also, a couple times I offered up the mainshaft, I tilted it down a bit and everything just slid off the back. So maybe I don't have everything seated? Those 1st/2nd Synchro brass pieces just fall off like bracelets. It's like I have to keep all the back half together while driving it into the bearing. Gravity is not my friend. The best position to keep it all together is with the front side of the casing pointed down. That puts the mainshaft loose bits on top, held in place by gravity. But driving it in like that is near impossible. Maybe I'll use the castelated nut and an impact wrench to "draw it up", like RoverP480 said.

Oh well. I guess I'll try again next weekend.

[roverp480]

You say its only when you finally tighten the 4 bell housing bolts that it seizes solid. How about just fitting the bell housing without the layshaft and see if it seizes , if it does its something to do with the primary shaft and mainshaft & not the layshaft. You shouldn't have to " Pull" the two pieces together with the bolts. Something is stopping it if you do need to , and it should go together, perhaps with a tap with a mallet, but nothing else . Just an obvious point, is the reverse gear fitted the correct way round? I think you need the reverse to be forward , to get the first speed gear on the layshaft around it, to align up the roller bearing. It should, if in any one gear or neutral all spin easily. I have had in the past one of the rollers on the rear layshaft bearing tip when trying to assemble, and stop the shaft going fully into the bearing. Just a thought, will it turn freely with just the mainshaft , reverse gear and layshaft assembled into the main box, ie without the bell housing with the First motion shaft ? I am just trying to eliminate and obvious clashes .

[vlad_d]

Week 14 Update:

Troubleshooting...
I had a good "stare and fiddle" at it this week. Sometimes, you gotta just look at something for a few days to sort it out. There's so many bits that could go wrong, it's hard to relay over a forum post. I also tripple-checked my part numbers. I definitely have the right parts. But I think I identified 3 points of "binding". Some are obvious. Some are subtle. Let me know what you folks think.

Binding #1: Reverse
This one is by design. If reverse slides to the rear of the casing, it is enguaged...and will "fight" any forward gears. Obvious, I guess. The trick is sliding reverse by the 1st & 2nd gears on the back of the mainshaft. The gears have to mesh for an instant so that reverse can slide through. My mistake was trying to grab the mainshaft and spin it to let reverse mesh with, and slide by 1st. Mainshaft was siezed(by reverse) so it wouldn't spin. But - and this is the key- the mainshaft assembly spins at 4 points(gears) along the shaft. So, you don't spun the mainshaft...you slightly spin 1st gear to create an opening for reverse to slide by. It's like a "crash" shift, with no synchronizer...just gears touching and pushing by. Once you do this, reverse slides by no problems.

Binding #2: Oil thrower(s)
I noticed when I tightened the Castel nut on the back of the mainshaft, it seized the mainshaft. The parts catalog shows 2 different part numbers fir a tin "oil thrower" on the back. This oil thrower goes right up against the oil seal.I have both on hand. I compared them:
#232415
#FRC5116

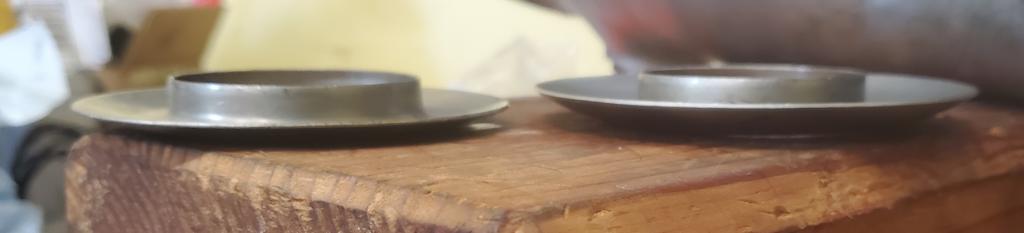

They are matched with different transfer case numbers. I can't really tell, but FRC5116 is smaller in both diameter and thickness(see pics). I tried both. Both pinch the output gear against it and bind up the mainshaft as you tighten the Castel nut. Seems wrong, because that nut needs 50/60ft lbs? It seizes at about 20 ft lbs. Any advice here? I left it hand tight while I work.

Binding #3: Synchro suction lock
Now that I saw the gears spin at different rates on the mainshaft(I know, I know, obvious)...I saw that the 3rd gear synchro coupling spins much faster than the mainshaft it sits on. Here is a close up video:

https://drive.google.com/file/d/1hBqJr_s54nVygV22yR5_VJOJLVQhoNl4/view?usp=drivesdk

Well, the Synchro unit -which is brand new machined part - is so tightly machined that it creates a suction lock against that conical coupling. It's like when two pieces of really flat glass come together and if they are wet, they stick together with a suction effect. The Synchro locks itself to that coupling, almost like it's solid. I think this is how the synchronizing works...just the fluid dynamics and capillary action. Anyway, after 3 or 4 turns, it seizes solid! See video demonstrating:

https://drive.google.com/file/d/1h8Ge3UJ1KdTZk-pirlvntMw98hEK7lLl/view?usp=drivesdk

So, I can get it to Bind any of 3 ways without even having the bellhousing on.

#1 is my mistake, so not to worry about.

#2 is concerning. I don't know what to do about that. Does engine force overcome this? Should I put the mainshaft in a press and see if I can get it in a few 0.001" further, to give more room? This feels like a new endfloat measuremnt?(exterior rear?)

#3 seems like #1...like an "as designed" thing. Should I ignore this, and assume shifting gears will resolve this?

Mainshaft might be going in crooked. Also fresh machined, might need bedding.
Another thing I noticed taking it apart 2 or 3 times. The mainshaft can go in crooked. I don't have a press, so I'm tapping it into the bearing with a mallot. I noticed one time I was able to put it in slightly crooked and it wobbled when spun. That's no good. I pulled it out and put it in again straight. I smashed it down with more mallet whacks...then "pulled" it in with the Castel nut. It spins true now, but it got me thinking I might still not have it seated right. I am going to go buy a Harbor Freight hydraulic press this weekend and try to press it in instead.

Also, as with other parts on this fresh new mainshaft...I suspect the front bearing seat might be slightly over-size. Maybe just 0.001". Just enough to make sliding into the bellhousing bearing a little uncomfortable. I will take some 600 grit sandpaper strips and burnish this surface slightly to make it fit easier. As you said @RoverP480, this should just be a single tap with a mallot...not a press fit. I noticed this with other new parts from BritPart. Just a little too tight.

[roverp480]

Regarding item 3 . The oil thrower should be a light press fit on the spacer bush that fits between the bearing and the drive gear and be clearance to the oil seal . I can only assume that somewhere in this assembly there is a wrong/faulty part .

[vlad_d]

Hol up!

You mean there's a spacer on the outside of the casing at the rear? Between the bearing and the oil thrower??!!

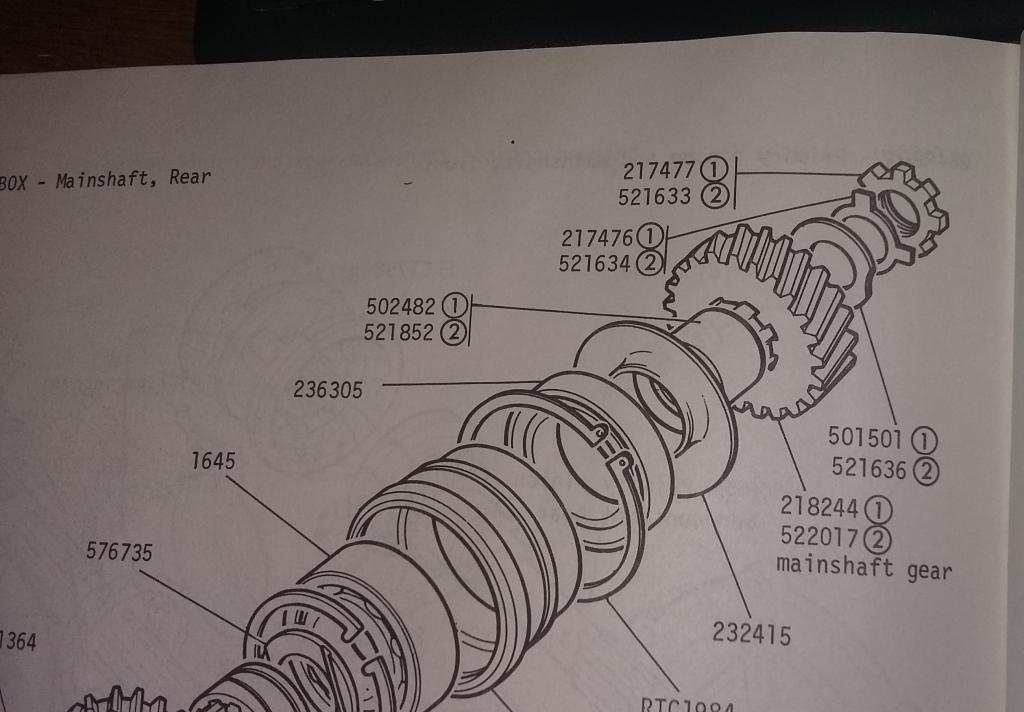

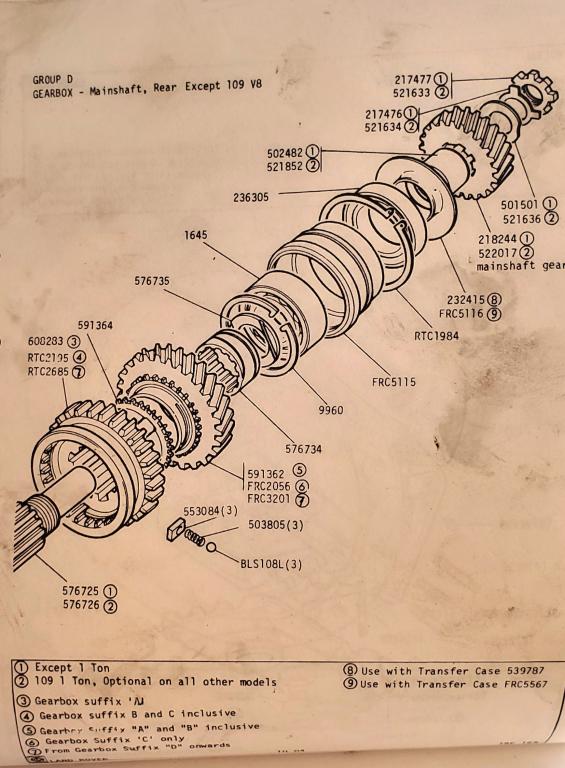

Here's the parts manual exploded view I'm working with:



Do you mean part 576735? The drawing shows it on the inside?!

[vlad_d]

Dag-Nabbit!

@RoverP480, You're a genius!!

Part number 502482!

I missed it in the diagram. I ordered it, bit didn't pit it on the back of the output of the mainshaft. Check it out, it's easy to miss. Compare this drawing to the one in the Parts manual:


That image doesn't even show that Effer!

Okay, so now with that metal collar in there:


The output gear sits nice and far away from the oil thrower! Tightening down on the castel/flange nut seats the gear against the collar, which presses the inside(rolley) part of the bearing! No longer pressing against the oil thrower! Ha-zah! You got it, @RoverP480! That was it for #2.

Now the insides spin nice, no binding. Got that flange nut tightened to 85 ft lbs. Still spins nice. One more problem off the list.

Something is still up with the front.

I got the machinist calipers on layshaft end and the inside of bearing. There is about a 0.03" discrepancy in the bearing inside and the layshaft end. Weird thing is I've had the layshaft thru that bearing before. But now, it won't go through full to the end. Gonna investigate there.

Another possibility is the mainshaft end. Going to get a dial indicator on there and see if somehow it's forward too far. Seems likely.

Again, the gearbox spins nice now. Only tightening the last 1/4 to 1/8" siezes the box. It's like the Pinion might be pressing down on the 3rd/4rth sunchro...driving it down on it's race on the mainshaft.

Will figure this out sooner or later. I've got the bastard on the ropes!!!

[roverp480]

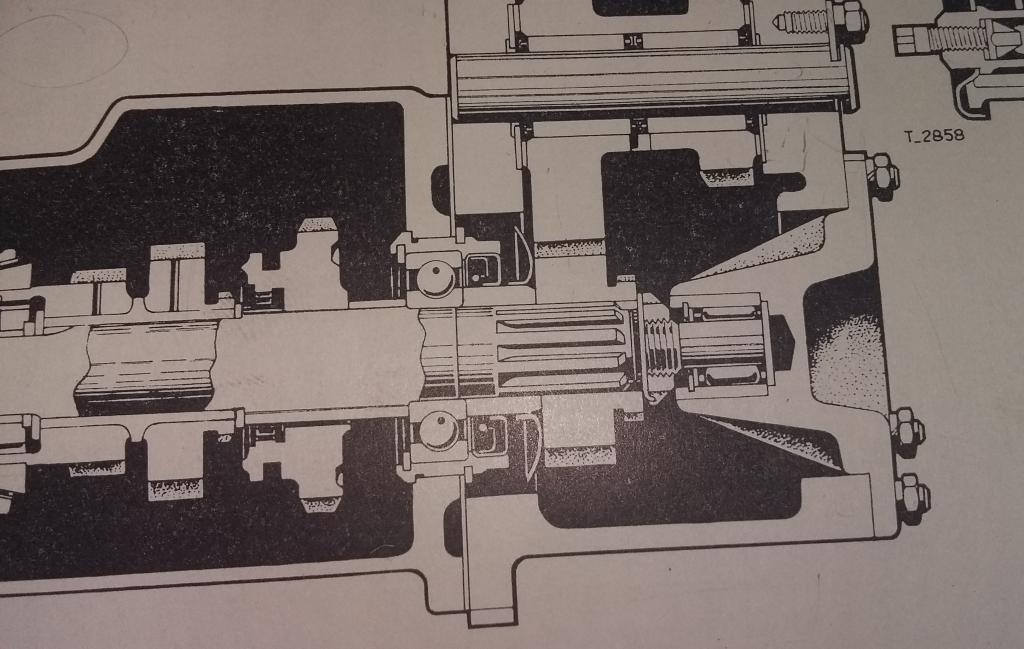

The oil thrower should be up against the gear end of the collar not the oil seal , see attached early S2 cross section , but in essence its the same as yours. I am sure you will resolve it all.

[roverp480]

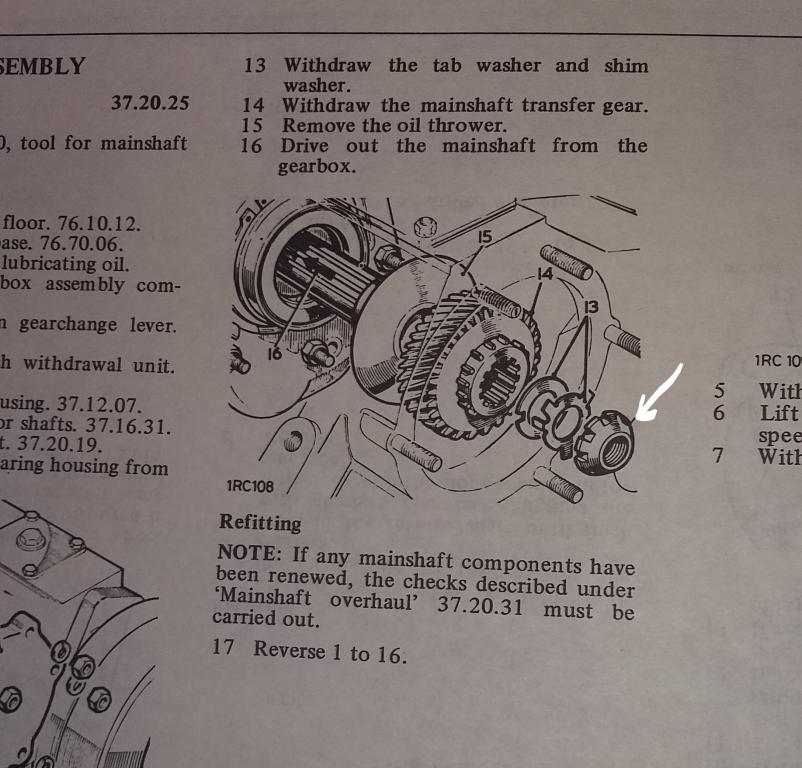

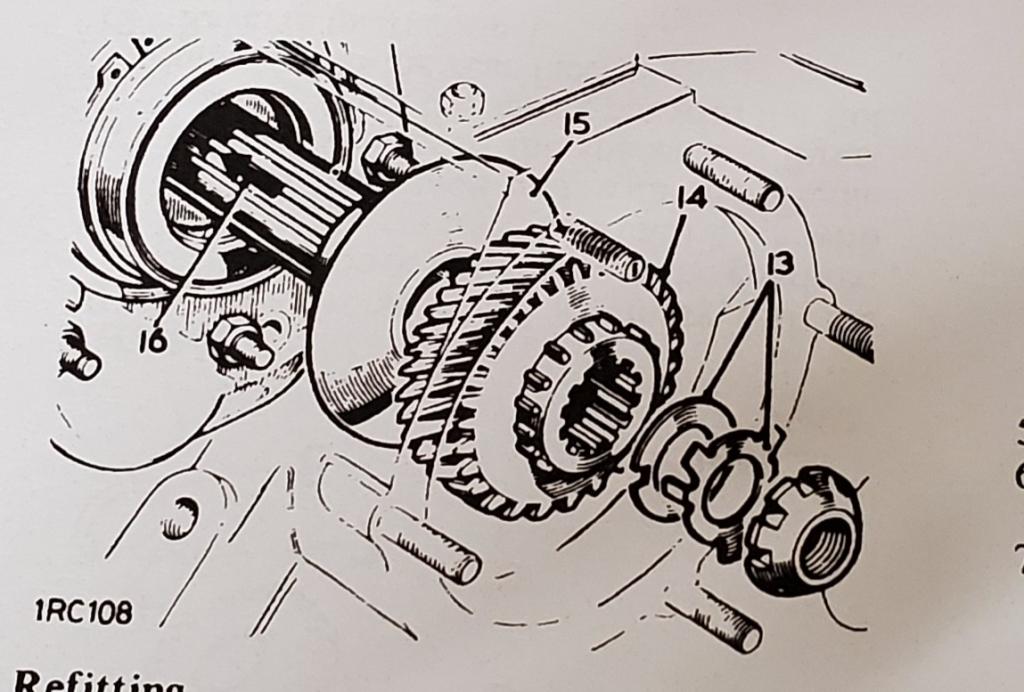

Also my extract from my S3 Book.
