    Another weekend on the S3---help with pictures/placement of 2 parts....

    Hello all,

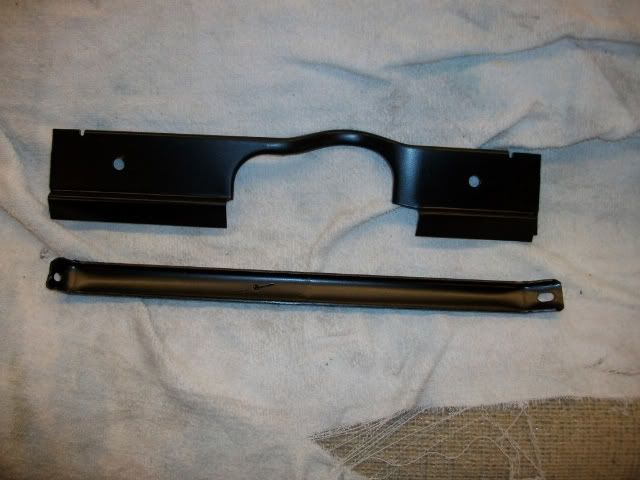

    So the top item is something in the dash---steering column bracket??Anyone have a pic of how it mounts into the assembly. I see nothing on the RN diagrams and could not find a PDF in the S3 parts listing (might have missed it). Only bit needing reassembly other than some wires on the dash!

    The bottom piece I THINK is a stabilizing bar (I have 2 of them). Does anyone have a pic of how it connects to the rear tub fender? Of course, if it is not the part I think it is, comments appreciated!

    Pics of progress coming on Monday!

    Cheers,
    Julian

    Julian
    72 Series III NAS
    03 Disco
    04 Freelander (sold, but still running strong)
    2011 LR2 (Fuji White/Tan....per the wife )
    65 MGB / 73 MGBGT
    71 RHD Hillman Super Imp
    Tags: None
    • SafeAirOne
      Overdrive
      • Apr 2008
      • 3435
      #2
      The top part goes just behind and below the instrument panel and above the steering column. You'll see 2 holes on each side of the plastic instrument surround on the dashobard. That metal piece screws on through those holes.

      The other piece is for the rear tub-to-wheelarch brace. On my 109 it goes from one of the rear tub crossmember attachments (the steel channels that go across the bottom of the tub) to a hole in the bottom edge lip of the rear tub just...behind, I want to say, but it might be in front...of the wheel arch.
      --Mark

      1973 SIII 109 RHD 2.5NA Diesel

      0-54mph in just under 11.5 minutes
      (9.7 minutes now that she's a 3-door).

        Comment

        • SafeAirOne
          Overdrive
          • Apr 2008
          • 3435
          #3

          --Mark

          1973 SIII 109 RHD 2.5NA Diesel

          0-54mph in just under 11.5 minutes
          (9.7 minutes now that she's a 3-door).

            Comment

            • knac1234
              4th Gear
              • Nov 2010
              • 442
              #4
              Mark,

              Thanks very much! I ended up not getting to it due to other "issues" but see clearly how it goes back.

              Regards,
              Julian
              Julian
              72 Series III NAS
              03 Disco
              04 Freelander (sold, but still running strong)
              2011 LR2 (Fuji White/Tan....per the wife )
              65 MGB / 73 MGBGT
              71 RHD Hillman Super Imp

                Comment

                • Max(SD)
                  Low Range
                  • Jul 2011
                  • 82
                  #5
                  Mark,

                  Sorry to hijack post.

                  Where are you getting those diagrams? I would be interested in a pdf for Series II.

                  Thanks.

                    Comment

                    • SafeAirOne
                      Overdrive
                      • Apr 2008
                      • 3435
                      #6
                      They're out of one of the SIII Parts Catalogues floating around on the internet. I haven't seen any SII parts catalogue .pdf's, just SIII's, though I never really looked for anything but SIII books.
                      --Mark

                      1973 SIII 109 RHD 2.5NA Diesel

                      0-54mph in just under 11.5 minutes
                      (9.7 minutes now that she's a 3-door).

                        Comment

                        • LR Max
                          3rd Gear
                          • Feb 2010
                          • 315
                          #7
                          FYI, you guys are awesome. You can look at a random part and know what it is.

                          I'm ok, hand me an axle or an engine part and I know it but not familiar with any body parts.

                          Max (we have the same name so this feels weird) send me a PM this evening and I'll see if I can assist you.

                            Comment

                            • SafeAirOne
                              Overdrive
                              • Apr 2008
                              • 3435
                              #8
                              Originally posted by LR Max
                              FYI, you guys are awesome. You can look at a random part and know what it is.
                              It's more of a sad statement that our rovers have been apart so often that we can now recognize most of the obsure parts.
                              --Mark

                              1973 SIII 109 RHD 2.5NA Diesel

                              0-54mph in just under 11.5 minutes
                              (9.7 minutes now that she's a 3-door).

                                Comment

                                • LR Max
                                  3rd Gear
                                  • Feb 2010
                                  • 315
                                  #9
                                  Such is the perils of owning a rover.
