    need ignition coil wiring diagram for 93 RRC

    Looking for correct wiring diagram for ignition system on a 1993 USA Range Rover 4.2 V8 engine including all the input signal lines for the coil, ignition amplifier module etc.
  • mearstrae
    5th Gear
    • Oct 2011
    • 592

    #2

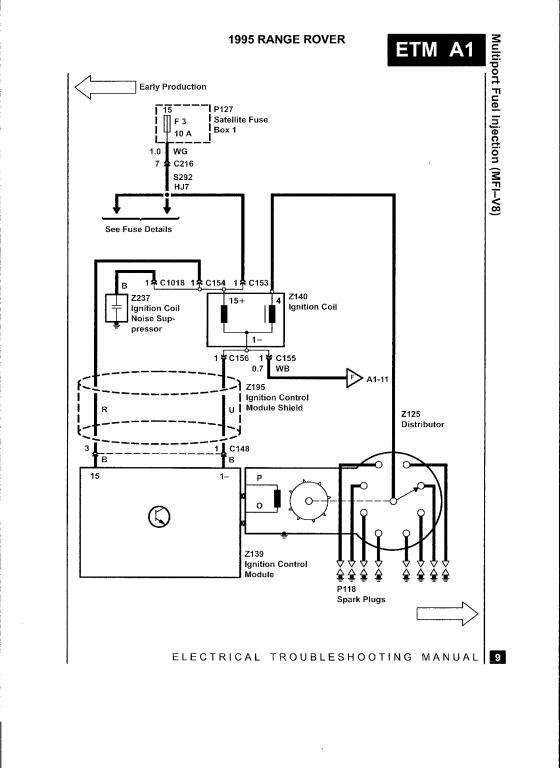

    Click image for larger version

Name:	roverdizzy.jpg
Views:	1
Size:	45.1 KB
ID:	167345 This ought to help out, it's for early '95 but I think it's similar and may be of some help.

    '95 R.R.C. Lwb
    '76 Series III Hybrid 109
    '70 Rover 3500S
